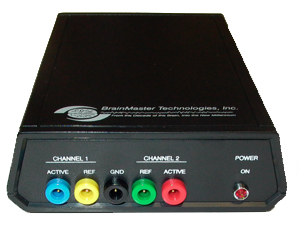

BRAINMASTER AT-1 W2.5
Clinical Pro Wideband System
BrainMastertm
Technologies is proud to announce the availability of a new wideband 2E
module for advanced neurofeedback application. Now in field testing stage.
This device provides the capabilities of the existing 2E modules but has the
amplifier bandwidth extended for high frequency training when using the
latest software. This device is supported by software including the new
BrainMaster 2.5 release, the BioExplorer Enhanced Driver for BrainMaster,
the forthcoming BrainMirror 1.2 and additional software in development.
Researchers and practitioners who are working at 40 Hz and above (gamma
band) training will find this device of value. It provides superior
recording and feedback of fast EEG rhythms and with the higher sampling
rate, provides high resolution recordings for assessment and training
purposes. The wideband 2E represents the latest in a continuing series of
improvements to BrainMaster products and puts our products in the same class
with devices costing many times more. To upgrade existing 2E devices,
click here.
Includes: Includes:
2E
Module;
hardware, documentation; cleaning gel; conductive paste; 5 gold plated
electrodes; designer carrying bag; 90-Day Parts and Labor Warranty plus an
additional 12-month Extended Warranty and a courtesy 12-month Affiliate
Membership; and a 12-month List Server membership at no additional cost in
this specially packaged system. Operational Manuals may be printed off the
2.0 Software CD as desired! Training CDs now included! Add earclips and
you’re ready to start training! Works on all Windows®
All European International clients must add $145.00 to cost to receive
mandatory extra warranty coverage of 24 months (plus receive three
additional months totaling 27 months of warranty coverage!)
Complete System Each: $1629.00
2E-W Module Only w/2 yr. extended warranty and 1 yr. Affiliate Membership
Each: $1239.00 |
The
BrainMaster AT-1
System

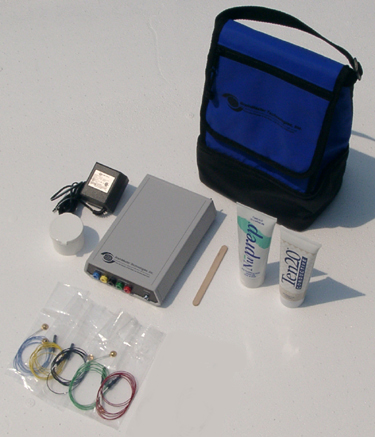

BRAINMASTER (AT-1-2.0C Clinical Pro System) Complete clinical
training (hardware and software) package. Includes our new 2.0 software --
two programs in one (complete clinical software package and
supervised remote training unlock feature included). Autothresholding;
coherence and phase (synchrony) training (up and down), approximately 100
enhancements over previous versions; new screens, better sounds, Dolphin
Animation, more games and so much more. 2.0 clinical software
introduces the new session librarian – ideal for clinicians choosing to
establish distance training with clients and retain supervision and
control of trainee’s protocol. Includes battery powered, portable
two channel 2E Neurofeedback Module; hardware, documentation, cleaning
gel, conductive paste, 5 gold plated electrodes, designer carrying bag, 90
Days Parts and Labor Warranty plus an additional 12 month Extended
Warranty and a courtesy 12 month Affiliate Membership, and 12 month List
Server membership at no additional cost in this specially packaged system.
Operational Manuals may be printed off the 2.0 CD as desired. Earclips
optional.
- Recommended:
step by step 2.0 software walk thru training video optionally
available at $20.
- Brainmaster
Clinical Training Video, for clinicians. Covers mini-q,
setting up protocols. $20
2.0
AVI OPEN ANIMATION UNLOCK CODE PACKAGE: (533-003): This
NEW 2.0 software option opens up the BrainMaster AVI animator to give
you
6 professionally produced animations specifically created for
biofeedback and and over 40 additional contributed animations (robots,
space-ships, plants...) aEach:
$450.00 ($350.00)
-
BRAINMASTER
(AT-1-1.9A) DELUXE: 2000 Software release. 2E Neurofeedback Module
System Two-channel device. Includes hardware, 1.9A Software release
w/ coherence, documentation, cleaning gel, conductive paste, electrodes,
manual, training video; 12 month Extended Warranty and Affiliate
Membership, 12 month List Server membership and preferred pricing at no
additional cost in this specially packaged system. Over $500 added
value included over the 1.9A Basic package. Earclips optional.
Each: $1169.00
Recommended:
step by step 2.0 software walk thru training video optionally
available at $20.
Brainmaster
Clinical Training Video, for clinicians. Covers mini-q, setting
up protocols. $20
BRAINMASTER
AT-1-9A Basic: PER ABOVE. Great back up or add on unit (
EXTENDED WAR-RANTY AND/OR AFFILIATE MEMBERSHIP NOT INCLUDED ($500 value).
Client may add extended warranty and/or Affiliate Membership at a later
date. Module may be used as a substitute for clinicians remotely training
with the 2.0 Clinical Pro software. Not available in most international
countries due to limited warranty. Each $969.00
Recommended:
step by step 2.0 software walk thru training video optionally
available at $20.
Brainmaster
Clinical Training Video, for clinicians. Covers mini-q, setting
up protocols. $20
BRAINWAVE
ANIMATION PRO (530-004):
Our established and very popular third party software program
recommended especially for those using the 1.9A or older version
BrainMaster software products (those using 2.0 software may consider
2.0 AVI Unlock (433-003). Displays a continuing 3-dimensional
journey through a detailed, graphical world based on digitized images of
breathtaking scenes. Includes 2- channel protocols, adjustable frequency
bands, additional animated scenes, simultaneous BrainMirrorTM display, EEG
spectrum and Compressed Spectral Array, and statistical summaries of EEG
Parameters. Includes CD-ROM disk and documentation. 30-day trial CD
available no cost other than $10 shipping/handling. All Window operating
systems. Each:
$375.00 ($350.00)
CLIENT
REMOTE TRAINING SYSTEMS
ENABLED FOR CLINICAL SUPERVISION:
*Client
Remote Systems (also known as Distance training systems) explained
below include: 2E Neurofeedback two channel module; hardware,
documentation, cleaning gel, conductive paste, 5 gold plated electrodes,
manual, designer bag and various levels of clinician control (using
passkey applications), 90-Day Parts and Labor Warranty. Earclips
optional. Additional PassKeys may be purchased on a “pay as you go”
basis to contain upfront investment and preserve cash flow if desired!
Clinicans may now rent (or sell) modules (pods) to clients yet maintain
quality supervisory control and be assured of training efficacy Click
here for 2.0 Clinical Pro FAQ.
BRAINMASTER
(AT-1-2.0 (RD) Deluxe Trainee Remote System). *Per Above. Trainee
package with full clinician supervision features. Ideal for clinicians
choosing to establish remote training practice or choosing to rent systems
to clients as well as clients seeking the optimal neurofeedback experience
with guided profess-ional supervision. The 2.0 Deluxe Package offers the
highest quality control and supervision opportunity for both clinician and
client. Clinician determines protocol and number of sessions.
Clinician receives each trainee session including raw EEG for review via
E-mail or floppy disc for file or change in protocol! Client is
assured of professional direction and assistance. Includes a
courtesy remote training PassKey for a full 2000 minutes of trainee use!
Additional control obtained in this system versus the Unlimted system
include time constraints that the clinician controls. User can only use
allotted minutes then have to return to you for additional time allotment.
12 month extended warranty is additionally included as well as a courtesy
Affiliate membership. Cost effective, cash flow sensitive. Training
video and earclips optional. Additional PassKeys available! The
“Deluxe” package represents a wise investment. Each:
$1195.00
BRAINMASTER
(AT-1-2.0U Unlimited Trainee Remote PassKey System). *Per above.
Unlimited sessions may be provided by clinician without need of
additional (minute) passkeys. Protocol solely determined by clinician.
Session Librarian included allowing internet interaction and supervision.
Flexible supervision available. Especially cost effective for your clients
needing long term neurofeedback needs. 12 month Extended Warranty and 12
month Affiliate Membership is included. Earclips and training video
optionally available. Each: $1495.00
BRAINMASTER
2-E MODULE (AT-1-2.0 Basic Trainee Remote System). *Per above.
Complimentary Basic 2.0 software offering a brainwave monitoring feature
and simple sound feedback including Alpha tones for relaxation training.
100 free PassKey minutes included for personalized neurofeedback training
under clinical supervision. This entry-level product is useful for
personal awareness and meditation and all the statistical functions work.
It is not possible to do training that depends on thresholds or protocols.
The basic built in folders are useful for the above-mentioned purposes
without limits. In addition the software API’s (Application Programming
Interfaces) still work so this is a good platform for people whose primary
interests are in developing their own software as an extension to the BMr
software, but who do not need the training capabilities of neurofeedback.
90-day parts and labor warranty included. Earclips optional.
Training video optional. Additional “passkeys” available.
Not available internationally.
Each: $975.00
PASSKEYS
PASSKEYS
(533-001)
)
These training control PassKeys are used with the serial number of the
BrainMaster module and are issued to the clinician or by order of the
clinician for client use. PassKeys can be purchased to enable home,
school or corporate training based on calendar time or by allocating fixed
amounts of training time in minutes. PassKeys offer clinicians new
business opportunities offering usage assurance and security never before
available. Clinicians can now work intimately with their trainee(s).
PassKeys give clinicians “choice” as to the required level of
supervision necessary for safe remote training in the home, school or
corporate environment! Older 2E modules (under serial number 1825) must be
2.0 upgraded for usage. PassKeys are individual codes (unique to
each serial number) and received in printed, E-mail or faxed form. Minute
PassKeys allocate a predetermined number of training minutes and can be
allocated to the client in 100- minute increments. Provides optimal
clinician supervision ability and offers the client ease of use and a
user-friendly home training experience. Minute PassKeys offer remote
training clients the inner security of supervised “expert” training
direction increasing the likelihood of beneficial training results. This
enabling feature offers clinicians and/or clients a “pay as you train”
opportunity offering a cost effective and cash flow sensitive approach for
most remote training needs. Excellent monitoring device for “on site”
as well as “off site” neuro labs! Minute PassKeys may be doled
out to several BrainMaster modules upon request.
1000
minutes(533-001-1M)
$200.00
($100.00)
2000
minutes(533-001-2M)
$300.00
($190.00)
3000
minutes(533-001-3M)
$400.00
($270.00)
5000
minutes(533-001-5M)
$500.00
($400.00)
10,000
minutes(533-001-10M)
$995.00
($750.00)
20,000
minutes(533-001-20M)
$1860.00
($1400.00)
50,000
minutes(522-001-50M)
$4495.00
($3250.00)
UNLIMITED
PASSKEY
- Unlimited Time Use (533-001-U)
Permanent
passkey. May be used to convert existing or older 2-E modules
(serial number 1825 and above only) into clinician controlled remote
training devices . A wise choice when less stringent control is
deemed appropriate by clinician (for single or multi family use).
Multiple protocols may be allocated per clinician approval.
$700.00
($600.00)
CALENDAR
PASSKEYS
allocate
designated days, weeks or months of training time as predetermined by the
Clinician or by the order of a clinician. Calendar PassKeys offer
unlimited session availability to the client well informed and trained in
neurofeedback training yet in need of a more continual training regimen.
12 month license available with monthly cutoffs. Special
schedules can be accommodated. We can optionally generate keys to
terminate on any date(s) that you choose. Provides a fixed and secured
expiration date for your client insuring that operation does not extend
past the authorized time and assuring equipment return as well as client
training compliance. Protect your equipment investment!
30 Days (533-004-30)
$80.00
($60.00)
90
Days (533-004-90)
$240.00
($150.00)
120
Days (533-004-120)
$480.00
($340.00)
One
Year PassKey/unlimited use (533-004-365)
$995.00
($600.00) |
What
is it?
The
BrainMaster 2E Module is a low-cost, flexible, general-purpose brainwave
monitor. It connects to a PC in the same way that a modem does; but
instead of communicating over the telephone network, it monitors
brainwaves. It is immediately useful for applications in biofeedback,
research, education, recreation, hobby, self-awareness, art, performance,
brainwave-controlled systems, and virtual reality. It provides many of the
same basic functions as systems costing many times more, in an innovative
yet simple and economical design.
Its
capabilities include recording 1 or 2 channels of brainwaves or related
signals, data storage and retrieval, real-time signal processing and
display, plus various forms of control and feedback. It includes many
graphical display modes. It is possible to interface with the software, so
that various external programs can control the BrainMaster, as well as be
controlled, enabling user-developed applications to interact with live
brainwave data. Control and data interfaces to Visual Basic, Pascal, C,
and C++ are provided.
With this device, you can digitally record, store, process, display, and
work with brainwaves using any PC with Windows and a spare serial port.
You will be able to monitor and display waveform characteristics such as
alpha, beta, delta, or theta energy, the amount of symmetry in the
brainwaves, or set up the system to respond to your brainwaves by creating
displays, sounds, or other effects. This is useful for many
applications in which there is a need to record and study brainwaves, to
play games using brainwaves, or to use brainwaves to control a
system, including interactive simulations and virtual reality displays.
NOTE:
The BrainMaster is approved for clinical biofeedback applications.
Federal law restricts its sale to or on the order of a biofeedback
specialist or practitioner. The BrainMaster hardware and software is
protected by US Patent # 5,899,867. This device is an outgrowth of
the BrainMaster project started by Dr. Thomas F. Collura, for the
furthering of the understanding of the brain and the mind.
The
BrainMaster 2E is a portable, battery powered EEG monitor, ideal for
clinical use or home training.
Included
with the system:
| |
 |
Hardware
including amplifier/digitizer |
| |
|
Software
including many visual and audio feedback options |
| |
|
5 gold
disk electrodes, cleaning gel & conductive paste |
| |
|
Training
Video |
| |
|
User
manual, eeg application & electrode manual |
Built in
capabilities:
| |
|
Statistical
summaries |
| |
|
Percent
time over threshold display |
| |
|
On-the-fly
threshold adjustments |
| |
|
Dual
monitor capability with windows 98 and above |
| |
|
8
digital filters with quadrature filtering |
| |
|
Artifact
rejection mode |
Features:
| |
|
Flexible
protocols and frequency bands |
| |
|
2
channel training |
| |
|
DLL
programming interface |
| |
|
Optically
isolated for safety |
| |
|
Laptop
compatible |
| |
|
Frequent
software releases |
Computer
Requirement:
| |
|
IBM PC
/ Compatible computer with a 486 or Pentium 133 MHz or higher
processor |
| |
|
WindowsTM
3.1, 95 / 98 / ME / 2K, XP, NT or OS/2TM
operating system |
| |
|
Sufficient
RAM to run Windows |
| |
|
2 MB
hard-disk space |
| |
|
SVGA
(800 x 600) Minimum, XVGA (1024 x 768) Recommended compatible
graphics adapter and monitor |
| |
|
Available
external COM port (RS-232 or “modem”) - COM 1,2,3 or 4 |
| |
|
Audio
Requirements
1.8, 1.9: SoundBlaster 16 compatible audio synthesizer
1.9A: Midi Wavetable audio synthesizer |
Note:
Computer requirements may vary when adding additional devices or software.
APPLE MAC
G3 & G4
| |
|
350
MHz processor (Minimum) |
| |
|
Virtual
PC or Soft Windows |
| |
|
Available
external COM port (RS-232 or “modem”, COM 1,2,3
or 4 |
What
does The BrainMaster consist of?
It
consists of a small (paperback book-sized) battery-powered module,
Windows-based PC software, and electrodes. The module is optically
isolated from the PC. It contains 2 EEG amplifiers, a microprocessor
controller, and the interface to the PC. The Windows software is used to
communicate with the module, acquire brainwave signals, and process and
display them. Your PC must be a Pentium/350, or faster, and have a spare
COM: (RS-232 or "modem") port.
Specifications:
Amplifiers
(EEG-type):
| |
|
Gain:
20,000 |
| |
|
Input
Impedance: 10 Gig Ohms |
| |
|
Input
Noise: <1.5 micro volts (peak to peak) |
| |
|
Bandwidth:
1.6 - 40 Hz |
| |
|
Common-mode
rejection: >110dB |
Communications:
| |
|
HW
Interface: RS-232 (female DB-25) |
| |
|
Speed:
9600 Baud |
| |
|
Isolation:
Optically Isolated to 130V (continuous) |
Digitizer:
| |
|
Type:
Successive Approximation |
| |
|
Sampling
Rate: 120 samples/second |
| |
|
Conversion
Time: 16 microseconds |
| |
|
Channels:
1 or 2 channels of brainwaves |
| |
|
(8-channel
A/D internal) |
| |
|
Resolution:
8 bits |
| |
|
Accuracy:
½ LSB |
Frequency
Components (user-adjustable):
| |
|
Delta:
1-4 Hz |
| |
|
Theta:
4-7 Hz |
| |
|
Alpha:
8-12 Hz |
| |
|
Low
Beta: 12-15 Hz |
| |
|
Beta:
15-20 Hz |
| |
|
Hi
Beta: 20-38 Hz |
| |
|
Gamma:
38-42 Hz |
Output
Controls:
| |
|
.wav
file played on each command. |
| |
|
MIDI
pitch sound (with "SoundBlaster") |
| |
|
DLL
Interface to Visual Basic, C, C++, Pascal |
| |
|
DLL
can be used to read data from BrainMaster, or to send
control information to BrainMaster. |
Processing:
| |
|
Algorithm:
FFT for BrainMirror |
| |
|
Window:
Hanning; Epoch: 1-second |
| |
|
Frequency
bin: 1 Hz |
| |
|
yQuadrature
Filters for training |
| |
|
Artifact
Rejection: Amplitude |
Displays:
| |
|
Raw
waveform (live and playback) |
| |
|
"Chaos"
Phase-Space Display. |
| |
|
FFT or
digital filter Frequency Spectrum |
| |
|
Compressed
Spectral Array |
| |
|
"Thermometer"
values (alpha, beta, etc.) |
| |
|
1-dimensional
Trend Line |
| |
|
2-dimensional
Trend Line |
| |
|
Command
Counters |
| |
|
"Pac-Man"
Game |
| |
|
"Boxes"
Game |
| |
|
Smiling
Face |
| |
|
Other
displays available using DLL interface. |
Control
Modes:
| |
|
Learn
Mode: Sets maxima, minima, and thresholds, sets counts to zero. |
| |
|
Play
Mode: Registers when any component, or combination of
components > threshold; Inhibits when any component, or
combination of components < threshold |
BrainMaster
2E / BMT System Specifications
Built In
Protocols:
| |
 |
ALERT(Focus,
Alertness) |
| |
|
DEEP
(Deep Relaxation) |
| |
|
FOCUS
(Concentration, Focus) |
| |
|
PEAK
(Peak Performance) |
| |
|
RELAX
(Relaxation) |
| |
|
SHARP
(Mental Fitness) |
Communications:
| |
|
Interface:
RS-232 port (25 pin female) |
| |
|
Speed:
9600 baud |
| |
|
Isolation:
optically isolated to 130 volts (continuous) or 1500 V (1 sec) |
EEG
Amplifiers:
| |
|
Gain:
20,000 |
| |
|
Input
Impedance: 10 Gig Ohms |
| |
|
Input
Noise: <1.5 micro volts (peak to peak) |
| |
|
Bandwidth:
0.5-40 Hz |
| |
|
Common-mode
rejection: > 110 dB |
Digitizer
| |
|
Type:
successive approximation |
| |
|
Sampling
rate: 120 samples/sec |
| |
|
Conversion
Rate: 16 microseconds |
| |
|
Channels:
1 or 2 |
| |
|
Resolution:
8 bits |
| |
|
Accuracy
1/2 LSB |
Frequencies
Resolved
(Nominal - User Adjustable)
| |
|
Delta:
1-3 Hz |
| |
|
Theta:
4-7 Hz |
| |
|
Alpha:
8-12 Hz |
| |
|
Low-Beta:
12-15 Hz |
| |
|
Beta:
15-20 Hz |
| |
|
High-Beta:
20-38 Hz |
| |
|
Gamma:
38-42 Hz |
Selectable
Filter Sensitivity
Displays:
| |
|
Raw
waveform, live and playback |
| |
|
“Chaos”
phase-space display |
| |
|
FFT
frequency spectrum |
| |
|
BrainMirror
frequency spectrum |
| |
|
Compressed
spectral array |
| |
|
“Thermometer”
bar graph values |
| |
|
One-,
Two-dimensional trend lines |
| |
|
Component
counters |
| |
|
“Brain-Man”
game |
| |
|
“Boxes”
game |
| |
|
“X-wing”
game |
| |
|
Numeric
display |
| |
|
Coherence
Display |
| |
|
Percent
time over threshold |
| |
|
Statistical
summaries |
Computer
Requirement:
| |
|
IBM
PC / Compatible computer with a Pentium 350 MHz or faster
processor |
| |
|
WindowsTM
3.1, 95 / 98 / ME / 2K, NT or OS/2 operating system with
sufficient RAM to run Windows |
| |
|
1
MB hard-disk space |
| |
|
SVGA
(800 x 600) Minimum, XVGA (1024 x 768) Recommended compatible
graphics adapter and monitor |
| |
|
Available
external COM port (RS-232 or “modem”) - COM 1,2,3 or 4 |
| |
|
Audio
Requirements
1.8, 1.9: SoundBlaster 16 compatible audio synthesizer
1.9A: MIDI Wavetable audio synthesizer |
Note:
Computer requirements may vary when adding additional devices or software.
APPLE
MAC G3 & G4
| |
|
350
MHz processor (Minimum) |
| |
|
Virtual
PC or Soft Windows |
| |
|
Available
external COM port (RS-232 or “modem”, COM 1,2,3
or 4 |
|
|
