There are two main companies that make
clinical grade biofeedback systems that support both neurofeedback and
peripheral feedback-- the Procomp/Flexcomp series shown here, and the
C2 series. . Other systems such as
the
Brainmaster,
the
A-1 EEG BF Trainer,
Brainquiry Wireless systems
and the
WaveRider
are
designed primarily for home use, for peak performance, and some, for
research. The Waveriders provide some simple EMG, Heart rate and skin
conductance/GSR feedback as well as EEG.
How the Infiniti systems
are put together:
The Procomp Infiniti encoder, the procomp 2 and the
flexcomp encoders run with Biograph Infiniti Software. The
encoders use a fiber optic cable to connect to a USB adapter, or, a
wireless, optional connection is also available ($895.)
To
put together a system, you need to select an encoder, then software, then
sensors. Each encoder comes with basic Biograph Infiniti Software.
Then you can add special upgrades.
We've been providing Procomp systems to
practitioners, researchers, Universities, Hospitals, Labs, and commercial
users longer than any dealer. Our expertise and experience is unexcelled. Click
here for info on our Great Pricing Pricing and Service
If you have an older version of the Procomp
or Biograph software, click here for more information on supporting
products and upgrade options.
|
- Software;
-
New!! a 4 hour DVD tutorial on Biograph Infiniti, by
Michael Thompson, and a CD with protocols and screens, by Michael and
Lynda Thompson.
Order and price info here
|
 |
 |
 |
|
BioGraph
Infiniti™ Platform
The BioGraph
Infiniti™ software platform has been carefully designed to meet your
current and future needs for biofeedback and psychophysiology - with
maximum flexibility and ease of use. This software platform’s modular
design offers a selection of specialized Application Suites as well as
powerful Application Developer Tools, to satisfy beginner and expert users
alike.
Go
>>
|
Multi-Modality™
Suite

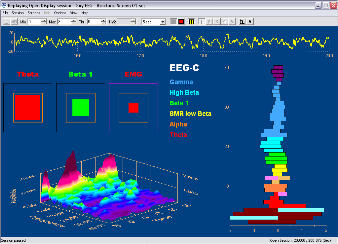

The
Multi-Modality™ Suite was developed to enable clinicians to have a
variety of screens to enjoy the power of the new ProComp Infiniti™
encoder. The Suite has 76 screens plus a few scripts, offering a variety
of combinations of modalities for all your needs.
Go
>>
|
Legacy™
Suite
The
Legacy™ Suite supports our instruments in "legacy mode*". With
the Legacy Suite, you will ease into the BioGraph Infiniti™ platform
with many of the great screens you have been accustomed to-and much more.
* all
devices running in ProComp+ emulation.
Go
>>
|
 |
 |
 |
|
|

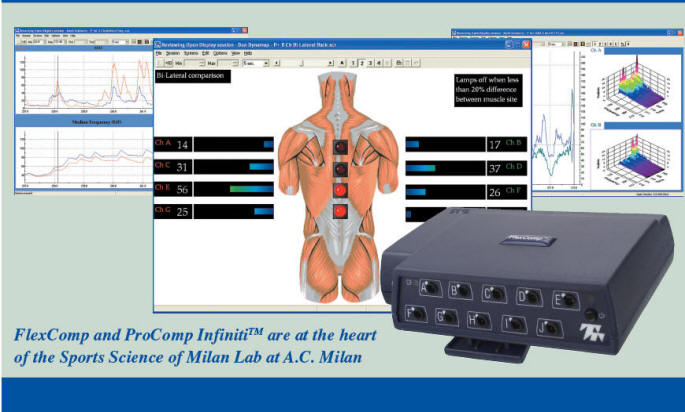

FlexComp
Infiniti™
Our top-of-the-line encoder is the ideal data acquisition and
physiological monitoring device for power users. It offers 10 high-speed
channels (2048 samples/sec.) with 14 bits of resolution (1 part in 16364)
and can acquire data from any sensor on this page.
Go
>>
|
ProComp
Infiniti™
The ProComp Infiniti™ is a new eight-channel, multi-modality encoder
that has all the power and flexibility you need for real-time,
computerized biofeedback and data acquisition in any clinical setting.
Go
>> |
ProComp
2™
The ProComp 2™
is a compact, powerful, 2 channel version of the ProComp Infiniti™
encoder, which can be easily worn on a head band or a shirt collar.
ProComp 2™ contains a built-in EEG sensor - requiring only an electrode
lead for EEG monitoring and biofeedback. It can use any two of the seven
available ProComp Infiniti™ sensors.
Go
>>
|

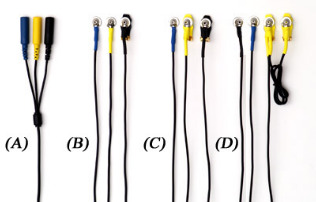

Sensors
& Accessories
You've invested in the best from Futurhealth and you expect top
performance. That means using disposables designed and approved to work
with our equipment or with other manufacturer's instruments.
Go
>> |
| BioGraph
Infiniti™ 2.0 Platform
Most people order the software with the
hardware and we offer prices for encoders with and without software.
When the software is purchased separately from an encoder,
|
 |
|
|
| BioGraph
Infiniti™ Platform |
| |
Product
Information
|
BioGraph
Infiniti™ software platform has been carefully designed to meet your
current and future needs for biofeedback and psychophysiology - with
maximum flexibility and ease of use. This software platform’s modular
design offers a selection of specialized Application Suites as well as
powerful Application Developer Tools, to satisfy beginner and expert
users alike. These options allow you to add additional features, as you
need them. Not only will the software adapt itself to your needs, it
will also grow with them as new modules become available.
Unlike
other biofeedback software packages, the BioGraph Infiniti™ software
does not simply focus on providing entertaining multimedia bells and
whistles. One of our top design goals was to make it the most powerful
clinical tool possible. For this reason, we have put a lot of effort
into making sure that the program’s ability to produce valid data,
track a client’s learning curve within and across recording sessions
and generate reliable reports were among its top features.
Whether
you are a clinician looking for a versatile biofeedback tool or a
researcher who needs a powerful data-acquisition system, the BioGraph
Infiniti platform is designed to offer you the most complete and
adaptable software solution.
Biofeedback
and Data Acquisition
State-of-the-art
multimedia biofeedback: With the audiovisual capabilities to
deliver physiological feedback in many creative ways, the Infiniti
Software ensures that you have a multitude of options to choose from
when trying to reach a diverse client population.
Timesaving
features allow flexible training routines: The BioGraph
Infiniti™ Software allows you to load up to 5 feedback screens and
switch between them, on the fly, during a session. This, and other
timesaving features, lets you rapidly adapt the training task to your
client’s capabilities and provide an increasingly challenging feedback
environment, without having to stop, load a new screen and restart your
session.
Scripted
sessions facilitate standardized assessments and follow-ups:
Time- and Event-based scripts let you run automatic sessions that guide
the client through a pre-defined sequence of activities and generate
activity-specific statistics. These powerful scripts help you
standardize all your assessment and follow-up sessions for optimal
clinical effectiveness.

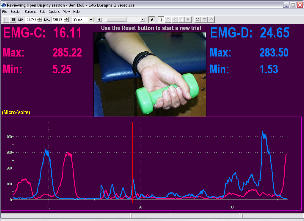

Synchronize
psychophysiology with video:
Extending your toolbox for client assessment and training, the BioGraph
Infiniti™ software allows you to record your client’s actions with
one or two Web cams, and synchronize the video with the physiological
signals.
Session
Reviewing and Reporting
Powerful
data-processing features: With its robust signal acquisition
capabilities, accurate artifact rejection functions and flexible
statistical analysis engine, the BioGraph Infiniti™ software allows
you to easily normalize recorded data and generate reliable data.
Specialized
session reports: Scripted sessions generate sophisticated
statistical reports that break down the session’s data into meaningful
segments and give you appropriate statistics for each segment. This
ensures that you get only the most clinically significant information
without having to sort through irrelevant numbers. Both raw and
statistical data is saved.
Trend
reporting on client progress: BioGraph Infiniti’s powerful
trend report capabilities allows you to follow a client’s progress
from visit to visit, which gives you guidance regarding the next step to
take. Trend reporting lets you easily demonstrate a client’s learning
curve, both during a given session and across sessions, to enhance case
management and to facilitate reimbursement.
Screen
Editor Lite
The Screen Editor Lite is included with your software and allows you to
change sound feedback and the animations from preexisting screens in
Legacy™ and Multi-Modality™.
|

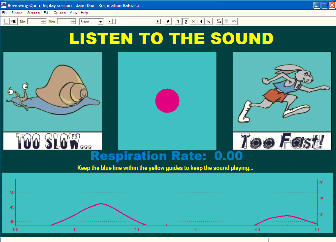

| Multi-Modality
Suite |
| |
Product
Information
|
The
Multi-Modality™ Suite was developed to enable clinicians to have a
variety of screens to enjoy the power of the new ProComp Infiniti™
encoder. The Suite has 76 screens plus a few scripts, offering a variety
of combinations of modalities for all your needs.
Multi-Modality™
Key Features:

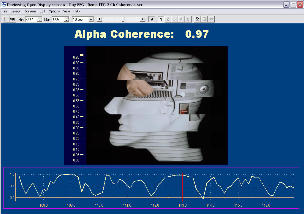

• Coherence screens
• Load up to 5 feedback screens per session
• Multi-linegraphs up to 8 signals at a time

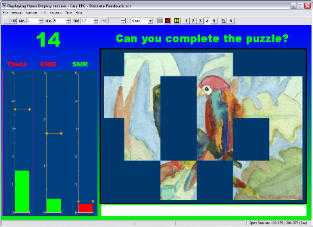

• AVI animations and fractal screens
• Physiology with synchronized video
• Options for immediate and discrete feedback
• Powerful statistics and virtual channels
• Enhanced 3D graphics
• Every time you open your client for a new session, it remembers the
settings you set for that individual in the previous session.
• Powerful trend reports
• Automatic sensor recognition
• Integrated impedance checking
• Midi-splitter sound feedback
|

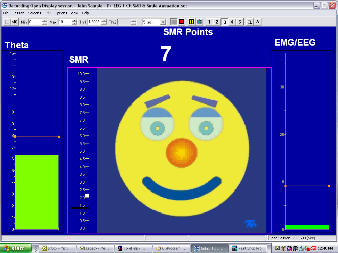

| Legacy™
Suite |
| |
Product
Information
|
When
designing the new Infiniti platform, the decision was made to make it
completely backward compatible to ensure that our customers have a
variety of ways of updating their current technology in an affordable
manner.
The
Legacy™ Suite was created for the ProComp+™ Protocol, to provide
clinicians who own a ProComp+™ or a ProComp 2™ to be able to use our
new BioGraph Infiniti™ Software. The sampling rates are the same as
the BioGraph 2.1, however the power of the Infiniti software surpasses
it. See features below. It is also available for the ProComp and
FlexComp Infiniti, when higher sampling rates are not required. The
Suite includes 43 screens.
Legacy
Key Features:
• Coherence screens
• Load up to 5 feedback screens per session
• Multi-linegraphs up to 8 signals at a time
• AVI animations and fractal screens
• Physiology with synchronized video
• Options for immediate and discrete feedback
• Powerful statistics and virtual channels
• Enhanced 3D graphics
• Every time you open your client for a new session, it remembers the
settings you set for that individual in the previous session
• Powerful trend reports
• Integrated impedance checking
• Midi-splitter sound feedback
|
| FlexComp
Infiniti™ |
| |
Product
Information
|
Our
top-of-the-line encoder is the ideal data acquisition and physiological
monitoring device for power users. It offers 10 high-speed channels
(2048 samples/sec.) with 14 bits of resolution (1 part in 16364) and can
acquire data from any sensor on this page.
Researchers,
surface electromyography (SEMG) specialists and ergonomists will
appreciate its ability to monitor and record SEMG and displaying it as
raw, median frequency, RMS, peak-to-peak, 2D and 3D frequency and power
spectrum. Up to four encoders (each using up to 10 channels) can be
connected simultaneously to produce the largest possible “window”
into the subject’s physiology.
FlexComp
Infiniti™ offers internal, user-activated calibration to ensure that
you can always obtain the highest quality signal, without the costly
downtime associated with factory re-calibration.
FlexComp
Infiniti™ is a total monitoring and biofeedback system with a wide
range of applications in psychology, physiatry, clinical research,
physical therapy, primary care, and sports medicine. Compact and
easy-to-use in tethered and un-tethered situations, using fiber optic
(for real time monitoring) or Compact Flash (for remote data storage)
modes, FlexComp Infiniti™ offers a tremendous range of capabilities
and the power to deliver instantaneous analysis of complex data.
When
combined with Infiniti software FlexComp Infiniti™ provides flexible,
high-speed processing of high-resolution data and allows clinicians to
choose from a full range of user-defined screen configurations for
specific applications or client profiles, using mouse or keyboard
controls.
FlexComp
Infiniti™ comes complete with:
- 14 bit resolution, ten-channel FlexComp Infiniti™ encoder unit
- TT-USB interface unit
- Fiber-optic cables (1’ and 15’)
- Four alkaline “AA” batteries
- Sleek fabric storage and carrying case
|
| |
Software
Information |

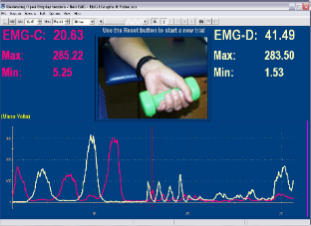

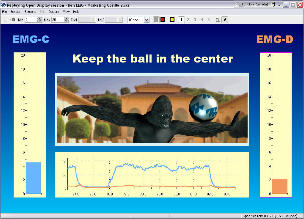

The
Infiniti software is created in a modular fashion to ensure you get only
what you need and do not fill your computer’s memory with unwanted
software. The first two suites for the Infiniti series are the Legacy
and Multi-Modality
Suites. They are general Suites which provide you with a variety of
screens for different modalities. In 2004 we will be releasing the
Developer Tools, EEG Suite and Physiology Suite. The Developer Tools
will allow for high end users to create their own screens, scripts and
channel sets. This ultimately provides the customer with the most
variety under one system.
|
| ProComp
Infiniti™ |
| |
Hardware
Information
|
The
ProComp Infiniti is a new 8 channel, multi-modality encoder that has all
the power and flexibility you need for real-time, computerized
biofeedback and data acquisition in any clinical setting.
The first
two sensor channels provide ultimate signal fidelity (2048 samples per
second) for viewing RAW EEG, EMG and EKG signals. The remaining six
channels (256 samples/sec) can be used with any combination of sensors,
including EEG, EKG, RMS EMG, skin conductance, heart rate, blood volume
pulse, respiration, goniometry, force, and voltage input.
ProComp
Infiniti™ offers internal, user-activated calibration to ensure that
you can always obtain the highest quality signal, without the costly
downtime associated with factory re-calibration.
In short,
the ProComp Infiniti covers the full range of objective physiological
signals used in clinical observation and biofeedback.
Housed in
an ergonomically designed case and requiring only a USB port, ProComp
Infiniti can be used with any IBM-compatible laptop or desktop PC. What’s
more, ProComp Infiniti can capture data in real time by connecting
directly to the PC via fiber-optic cable, or it can store data on a
Compact Flash memory card for uploading later to the PC.
ProComp
Infiniti comes complete with:
- 14 bit resolution, eight-channel ProComp Infiniti encoder unit
- TT-USB interface unit
- Fiber-optic cables (1’ and 15’)
- Four alkaline “AA” batteries
- Sleek fabric storage and carrying case
|
| |
Software
Information |

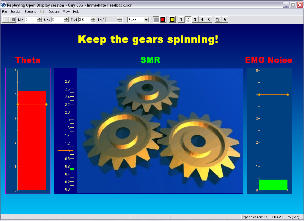

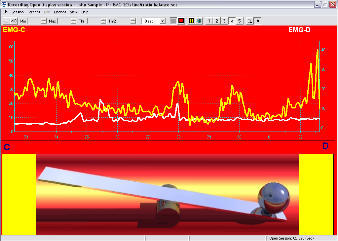

The
Infiniti software is created in a modular fashion to ensure you get only
what you need and do not fill your computer’s memory with unwanted
software. The first two suites for the Infiniti series are the Legacy
and Multi-Modality
Suites. They are general Suites which provide you with a variety of
screens for different modalities. In 2004 we will be releasing the
Developer Tools, EEG Suite and Physiology Suite. The Developer Tools
will allow for high end users to create their own screens, scripts and
channel sets. This ultimately provides the customer with the most
variety under one system.
|
| ProComp
2™ |
| |
Product
Information
|
The
ProComp 2™ is a compact yet powerful 2 channel device that allows
clinicians to set up a second clinical system – or to empower their
clients by offering them a take-home device that is convenient to wear
on a headband or a shirt collar.
The
ProComp 2™ contains a built-in EEG sensor (simply connect an extender
cable for EEG monitoring and biofeedback), and it can use any two of the
ProComp Infiniti™ sensors. The ProComp 2™ system contains all the
peripherals to easily connect it to a desktop or laptop IBM-compatible
PC.
Benefits
for you and your clients
- Add additional training rooms to your clinic quickly and economically
- Promote training in the home environment to improve outcomes
- Enhance long term compliance
- Monitor peripheral measures as EEG
- Includes a built in EEG sensor
- Monitor peripheral measures as EEG
- Quality and expert support
ProComp 2™
comes complete with:
- 13 bit resolution, 2 channel ProComp 2™ encoder unit
- Fiber-optic cables (1’ and 15’)
- Two alkaline “AA” batteries
- Carrying case
|
| |
Software
Information |

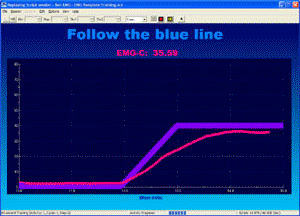

The Legacy
Suite was created for the ProComp+ Protocol, to provide clinicians
who own a ProComp+ or a ProComp 2 to be able to use our new BioGraph
Infiniti Software. The sampling rates are the same as the BioGraph
2.1, however the power of the Infiniti software surpasses it. See
features below. It is also available for the ProComp and FlexComp
Infiniti, when higher sampling rates are not required. The Suite
includes 43 screens.
|
| Sensors
& Accessories |
| |
|
|
|
| |
MyoScan-Pro™
A pre-amplified surface electromyography sensor used with the ProComp
Infiniti channels C – H for RMS sEMG. Features a range switch in the
sensor head to change filter settings between 0 – 400 µV Narrow
filter, 0 – 400 µV Wide filter, 0 – 1600 µV Wide filter.
Compatible with Triode electrodes or extender cables for wider placement
of electrodes.
|
MyoScan™
A pre-amplified surface electromyography sensor used with the ProComp
Infiniti channels A – B for RAW sEMG. Compatible with Triode
electrodes or extender cables for wider placement of electrodes. Range
of 0 – 2000 µV.
|
EEG-Z™
A pre-amplified electroencephalograph sensor with built in impedance
sensing. Get the ultimate hook up every time with this sensor as it
monitors both the reactive and resistive elements of the client, sensor
connection. Signal Input Range 0 -200 µV, Bandwidth 2 Hz – 1 KHz.
|
| |
| |
|
|
|
| |
EEG
Flex/Pro™
A pre-amplified electroencephalograph sensor, without the built in
impedance sensing of the EEG-Z.
|
EKG™
A pre-amplified electrocardiograph sensor, for directly measuring heart
electrical activity. Connects via extender cables for a single channel
hook up. Bandwidth of 0.05 Hz – 1 KHz.
|
Temperature
Sensor
A skin temperature sensor, measuring between 10°C – 45°C ( 50°F -
115°F ).
|
| |
|
|
|
| |
|
 |
|
| |
Blood
Volume Pulse (BVP)
A pulse detection sensor housed in a small finger worn package, to
measure pulse rate of client.
|
Respiration
An easy fitting high durability latex rubber band fixed with velcro
respiration belt for monitoring respiration rate from a client. Can be
worn either thoracically or abdominally, over clothing. |
Skin
Conductance
A sensor to measure the conductance across the skin, normally connected
to the fingers or toes. Supplied with two finger bands. |
| |
|
|
|
| |
 |
 |
|
| |
Extender
Cables
Extend the placement possibilities of the MyoScan and MyoScan Pro,
sensors with the shielded, low noise extender cables. Also used with the
U-Control, and available in a number of lengths and configurations. |
Vaginal
& Rectal Sensors
For single patient multiple use monitoring of the pelvic floor muscles.
These precision sensors feature a vertical electrode configuration to
ensure measurement along the direction of the muscle group. The T-bar
ensures repeatability of measurement with respect to orientation and
depth placement between uses. The small overall size and bulb
configuration enable comfortable and secure seating of the sensor in a
number of client positions including walking, standing or prone. |
|
| |
|
|
|
| |
 |
EEG
Extender Cables
(A) DIN cable extender cable, connects to
client via replaceable electrodes. Enabling monopolar or bipolar
connections it is the most versatile option. Electrodes
purchased separately.
(B) Bipolar extender cable, with permanent tin
cup electrodes with one ear clip.
(C) Monopolar extender cable, with permanent
tin cup electrodes with two ear clips.
(D) Linked ear extender cable, with permanent
tin cup electrodes and linked ear connections.
We
recommend getting option A, the din cable extender cable,
combined with our EEG Lead upgrade kit ($50 per channel). This
allows you to switch leads and configure either mono or bipolar
set-ups, and if a lead breaks, you can just replace a single
lead, not the whole cable.
|
| |
|
 |
Electrodes
(A) Triode, electrode with standard 2cm spacing of
silver silver chloride electrodes, backed with nickel plated
brass snaps to prevent corrosion when connected to
pre-amplifiers for extended periods.
(B) UniGel electrodes, pre gelled single
electrodes, or sensitive placements on dry skin.
(C) Single strip electrodes, versatile
electrodes can be used as strip or separated for wider
placements. |
|
| |
|
|
|
| |
NOTE
All
sensors and accessories feature gold plated protected pin inputs,
satisfying regulatory requirements for safety. All sensors currently
shipping feature internal identification circuit to inform the ProComp
Infiniti encoder what sensors are present. EEG Electrode upgrade Kit
uses tin electrodes, just like the electrode helmets made by the
manufacturer we get our electrodes from.
|
|
