One Channel Wireless EEG: $1989 (shipping
in continental US $25)
- PET EEG, Bioexplorer, active
electrode 1 channel, supply
of re-usable electrodes,
bag of 50 active electrodes, armband.
-
Two
Channel unipolar Wireless EEG:
$2089 (shipping
in continental US $25)
-
-
Two
Channel Bipolar Wireless EEG:
$2189 (shipping
in continental US $25)
- PET EEG, Bioexplorer, active
electrode 2 channel,
supply
of re-usable electrodes, bag of 50 disposable
active electrodes, armband.
add the hat for $30
(but the armband is a superior holder.)
To place your order call 215-504-1700 or email
futurehealth (at) verizon.net |
|
Technical
specifications PETEEG
- Analog
inputs: 2 channels
- Sampling
frequency: 200, 400, 800, 1600 Hz
- Sample
method: All channels simultaneously
- A/D
resolution: 29 bits
- Input
range: ±
2.5 V
- Resolution:
4.7 nV
- Input
impedance: > 2 TW
- Bandwidth:
Up to 800 Hz (dependent on sampling frequency)
- CMRR:
120 dB
- DC
Amplifier
- On-board
memory
- Tactile
feedback vibrator
|

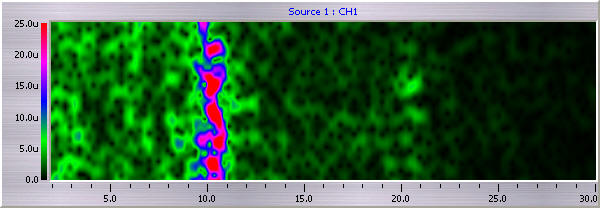

Spectrum Analyzer Display; Displays
the spectrum of a signal. Currently supports four
different modes: spectrogram (shown below), bins, compressed
spectral array, and 3D. |
|
PETEEG –
Electroencephalogram wirelessly
detects, displays and records Brain activity

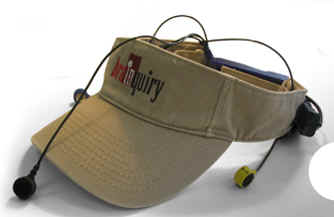

Your brain activity (EEG) can be assessed by
simply using a golf cap! All electronics are inside the cap,
including the electronics, the active electrodes and the Bluetooth
wireless transmitter. Due to our patented electronics EEG can be
assessed in a user friendly way and issues like impedance problems
belong to the past.
Measuring or feeding back EEG activity can be
used for sleep research, relaxation exercises, Neurofeedback, EEG
Biofeedback or peak performance training.
We supply high quality EEG hardware (low
signal to noise ratios, high sampling rates: 200 Hz and higher),
wireless capabilities and scalability. The scalability enables users
to connect up to 8 devices to 1 single PC!
Use this package for biofeedback, brain
monitoring in the laboratory, to study the effects of meditation,
music, advertising, etc.

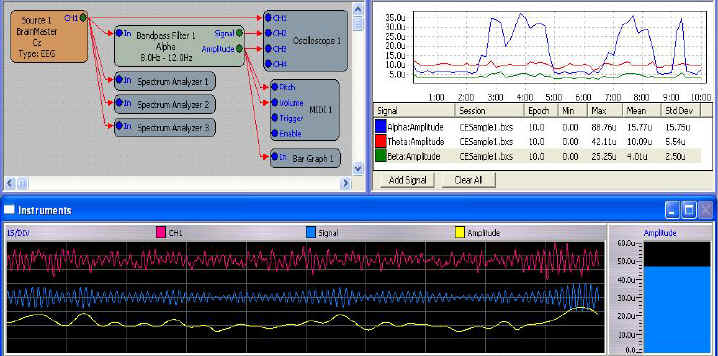

Real-time Data
Display/feedback

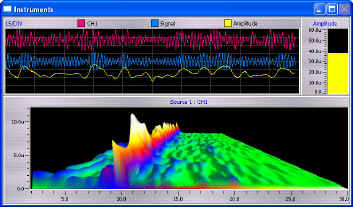

Two Spectrum Analyzers configured as a
bilateral spectrum display
|
