| The
Brainmaster EEG Biofeedback product line is one of the great success
stories of biofeedback It's a unique system, originally designed by
Tom Collura, who, in his other life, used to design multi-million dollar
brain imaging systems. He's taken a unique approach, allowing the
Brainmaster project to become a worldwide Internet supported collaboration
of a group of people all over the world, via listserve group.
Futurehealth was the
first company to start offering the Brainmaster and we are thrilled to see
it has attained the level of popularity it deserves. Now, Brainmaster is
one of the best-selling EEG systems. We're glad to have done our part to
help make it happen. We continue to have a very close working relationship
with the company.
Our
four hour Brainmaster
DVD, taught by Brainmaster developer Tom Collura, helps you get
off to a good start (E4-30
BrainMaster
Practicum - Basic through Advanced Neurofeedback with the Brainmaster
$149 if
purchased separately, $49 if purchased with a system 2.5 or higher, $89 if
purchased with systems under 2.5.) We do recommend, if you are planning on doing home
training with it, that you start off with a session or two with a
professional, trained Neurofeedback practitioner. This helps you to make
sure you are attaching electrodes properly and able to tell the difference
between brainwave signals and electronic noise. We'll be happy to help
connect you with a practitioner.
This page lists some of the main
Brainmaster products, with links to a number of pages that allow to get
plenty of detailed information on the product, software, features,
options, specs, etc.

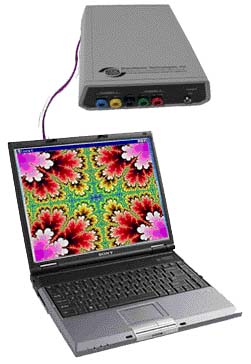

ATLANTIS SERIES (I & II) Equipment Description
State
of-the-art technology. EEG inputs sampled with 24 bits. Maximum EEG sampling
rate (1 channel) 8192 samples/second. Presently (8-06) emulating 2.5W.
Continual impedance checking, EEG/ Biofeedback Systems with USB Interface
(no batteries, no power cord). Total Immersion feature (photic, vibrotacile,
auditory) internal autonomous functions presently functioning with 2.5W.
Pricing Includes: 2.5SE Software, shielded cable; hardware, documentation;
cleaning gel; conductive paste; 5 gold plated electrodes; designer carrying
bag; 90-Day Parts and Labor Warranty plus an additional 12-month Extended
Warranty; Courtesy 12-month Affiliate Membership; and a 12-month List Server
membership at no additional cost in this specially packaged system. Training
CDs or DVD now included. Add earclips and you’re ready to start training.
Recommended on Windows XP® and above. Continuous real-time impedance
checking and monitoring of both EEG and AUX channels for additional
biofeedback modalities; Direct Current (DC) and Slow Cortical Potential
(SCP) measurement, Triamptm amplifier design; (*using 3.0 software release
availability approximately 4Q 2006 – 4Q 2008). Stand alone power with LiMH
battery device upgrade to become available at future date.
(Note: Atlantis I and II series initially introduced emulating 2.5W software
and hardware capabilities. Certain Atlantis software related capability to
become available as new 3.0 software release evolves throughout 2006-2008).
ATLANTIS I (4+4 DESIGN) w/2.5SE
Atlantis I is a 4+4 design (with four channels of EEG and four channels of
AUX signals) ideal for additional biofeedback modalities. Monitor two people
at one time for a variety of applications.* These include clinical work and
research in couples interaction, energy medicine, peak performance,
synchrony training, and the healing arts. The Atlantis I system is capable
of
 recording
bio-potentials from two individuals. For example, two channels of EEG plus
one channel of skin potential/impedance, plus one channel of temperature,
could be recorded from each person. Includes continuous real-time impedance
checking and recording; Total Immersion with photic, vibratory and auditory
feedback. 2 Relay switches for use with EEG driven electrical devices; Dual
Eventdetection button inputs included. Standalone power with LiMH battery
device upgrade to become available at future date. (*Expandability w/3.0
software available 4Q 2006 – 4Q 2008
Each: Clinical System $2679.00
ATLANTIS II (2+2 DESIGN) w/2.5SE
Atlantis II is a 2+2 design, with two channels of EEG and two channels of
AUX signals for additional biofeedback modalities. Includes continuous
real-time impedance checking and recording; Total Immersion with photic,
vibratory and auditory feedback. Direct Current (DC) and Slow Cortical
 Potential
(SCP) measurement, using Triamp amplifier design; Stand alone device (using
3.0 software updates projected availability 4Q 2006 – 4Q 2008).
Professional Clinican System. Each: $1679.00
Remote Unlimited Home User Training w/supervision. Each: $1640.00
Remote Deluxe Home User with 2000 home training minutes. Each: $1340.00
BRAINMASTER AT-1 2.5W (WIDEBAND) 2.5SE SYSTEM
Battery
operated. Amplifier bandwidth extended for high frequency training when
using 2.5SE software. 2 high quality amplifiers. Input impedance: 1000 GOhms;
sampling accuracy: 0.4 microvolts; operating bandwidth: 0.5-64.0 Hz-and is
intended to be sampled at a rate of 256 samples per second or faster; CMRR:
120 dB minimum; interface to PC: optically isolated, serial or optional USB
available; batteries: internal, rechargeable, optional external 9 volt
battery back up available, AUX (HEG) interface standard. Robust, reliable,
upgradeable, easy to use, the industry EEG workhorse. Supported by
BrainMaster 2.5SE software release, the BioExplorer Enhanced Driver for
BrainMaster; BrainMirror 1.2 and additional software in development.
Researchers and practitioners who are working at 40 Hz and above (gamma
band) training will find this device of value. It provides superior
recording and feedback of fast EEG rhythms 256 sampling rate, provides high
resolution recordings for assessment and training purposes.
AT1-2.5W Professional Clinical System Each: $1379.00
AT1-2.5W-RU Remote Unlimited Use - Home Training system (Home User System)
$1289.00
AT1-2.5W-RD Remote Deluxe with 2000 home training minutes (Home User System)
$989.00
AT1-2.5W Basic system w/limited 2.5SE software use. 90 day warranty Add
additional remote
training passkey licenses as needed. $969.00
BRAINMASTER AT1-2B
USB
Interface. Same specifications as 2EWideband above: Only available with
remote training passkey licenses. Not available for professional/clinical
passkey license. Amplifier bandwidth extended for high frequency training
when using 2.5SE software. 2 high quality amplifiers. Input impedance: 1000
GOhms; sampling accuracy: 0.4 microvolts; operating bandwidth: 0.5 -64.0
Hz-and is intended to be sampled at a rate of 256 samples per second or
faster; CMRR:
 120
dB minimum; interface to PC: optically isolated, serial or optional USB
available; batteries: internal, rechargeable, optional external 9 volt
battery back up available, AUX (HEG) interface standard. Robust, reliable,
upgradeable, easy to use, the industry EEG workhorse. Supported by
BrainMaster 2.5SE software release, the BioExplorer Enhanced Driver for
BrainMaster; BrainMirror 1.2 and additional software in development.
Researchers and practitioners who are working at 40 Hz and above (gamma
band) training will find this device of value. It provides superior
recording and feedback of fast EEG rhythms 256 sampling rate, provides high
resolution recordings for assessment and training purposes.
AT1-2B RU Remote Unlimited Use –Home Training system (Home User System).
Each: $1379.00
AT1-2B RD Remote Deluxe w/2000 home training minutes (Home User System).
Each: $1079.00
AT1-2B Device only. 90 day parts/labor included. Additional remote training
passkeys available.
Each: $895.00
MINI-Q™ SYSTEM MQ-1
BrainMaster MINI-Q™ Add-On works with 2 EW Modules (2.0SE or 2.5 Software).
While not a QEEG or a replacement for a QEEG, the MINI-Q™ provides a simple,
quick EEG assessment method. Operates
with an ElectroCap, BrainMaster’s FlexCap, or with manually attached
electrodes. Scan 12 EEG channels in 6 minutes, using 1-minute epochs. Can
use any epoch length you want, and can break up records for eyesclosed,
eyes-open, task condition, etc. BrainMaster’s specialized MINI -Q™ software
simplifies the assessment process from start to finish. It automatically
controls, times and pauses all data-taking, prompts you to set the switch
position, allows you to preverify all waveforms visually before data-taking,
and then organizes all data for display, graphing, Excel export, etc. Reads
locations: Fz, Cz; F3, F4; C3, C4; T3, T4; P3, P4; O1, O2. All records are
labeled with proper electrode identifiers. Using the MINI-Q™ assist
software, it is easy to gather a substantial mini-assessment, with a minimum
of confusion or errors. This system can assist with mini-assessments as
described by various practitioners. Data reports include amplitude (microvolts
), FFT energy (percent), variance, and dominant frequency for each of 8
frequency bands, component ratios (theta/beta, etc), plus coherence, phase,
and asymmetry between channel pairs. A variety of templates and mac-ros are
available for interpretation, graphical display, and reporting. MINI-Q™ is
an ideal way to obtain continued “snapshots” of a trainee’s overall EEG
state. It is simple enough to conduct before and after training, to assess
short-term effects. MINIQ ™ can be done in many situations in which a full
QEEG may be impractical, costly, or simply unavail-able. Whereas there may
be a question about the need for a QEEG in any given situation, the MINI-Q™
always provides an assessment alternative that is simple, reliable, and
cost-effective. MINI-Q is a trademark of BrainMaster Technologies, Inc.
MINI-Q patent pending. MINI-Q™ can be interpreted by Soutar, Demos,
NeuroGuide and Z Score DLL Training.
Each: $989.00 ($789.00)
|
OPTIONAL ACCESSORIES
you’ll be interested in:
see below |
Computer Requirements:
-
IBM PC
Compatible
-
Pentium 350 MHz or faster processor
-
WindowsTM 98 / ME / 2K, NT or OS/2
-
Sufficient RAM to run Windows
-
SVGA
compatible graphics adapter and monitor 800 x 600 Minimum, 1024 x 768
Recommended (requires optical adapter for USB use)
-
Note:
BrainMaster 2E will not plug into USB port without adaptor
-
4 MB
hard disc space
-
MIDI
compatible synthesizer & speaker
-
Also
runs on Apple Mac G3 or G4 with Virtual PC or Soft Windows!
Why
BrainMaster?
Single
Source –
BrainMaster is a single source of hardware, software, support, and training.
Although we do support third-party packages and enhancements, you do not
need to go to one source for hardware, another for software, another for
“setups”, another for support, etc. In addition, the entire BrainMaster
system is approved for clinical use, providing both the clinician and the
trainee with a system that can be used with confidence.
Simplicity –
You can configure and apply basic protocols with only a few mouse clicks.
You do not need to acquire setups or designs from anyone else, although a
wide range of special packages and software are available. Just create a
training “folder”, choose the settings file, and begin. Settings can be
changed at any time, using our setup screens, or “on the fly”. It is also
very simple to design custom protocols. All designs are done with simple
control screens, allowing you to select the parameters, displays, and sounds
suited to the task. All changes are automatically remembered for the next
session, allowing you to pick up where you left off.
Ease of
use -
No need to design detailed screens, processing designs, or outputs.
BrainMaster’s unique panel and window design allows you to choose displays
up front, or while running. Even if you did not anticipate the need to see
a particular component or display, you can always select it on the fly, and
view it, then turn it back off again in an instant. The same is true of our
sound modes, voices, and feedback modes. You can get what you need, when
you need it.
Consistency –
BrainMaster’s built-in processing is uniform and consistent. While you can
change many parameters (frequency bands, thresholds, autothreshold targets,
etc), you can be confident that if you leave them as is, you will get
consistent and repeatable results. No need to wonder about what the
underlying design has built into it, what another user may have changed, or
what is unique about a “special” design.
Quality
–
Our signal processing routines are optimized for EEG training. Based upon
years of research in analog and digital techniques, the BrainMaster’s unique
Quadrature Analyzer provides fast and accurate feedback of all EEG variables
including amplitude, phase, frequency, coherence, similarity, comodulation,
and other component values. Our built-in envelope detection, coherence and
phase calculation, and related functions provide responses faster than
conventional designs, which is significant for effective EEG training.
Moreover, both fast Quadrature Digital Filters and Fast Fourier Transforms
(FFT) are used, to provide an ideal combination of fast response for
training, plus comprehensive analysis for spectral displays and statistics.
Confidence –
with over 4000 systems in service, BrainMaster is field-proven. And with
over 200 improvements since our first system appeared in 1995, you know that
the latest techniques and features are available, or coming soon, under our
continued aggressive development programs. In addition, our unique “Remote”
architecture allows clinicians to deploy home systems with confidence,
knowing that the trainees are using the prescribed protocols, which can be
easily changed under remote control, and that results will be consistently
reported.
Versatility –
BrainMaster systems can be used for assessment as well as training, and are
also ideal for teaching, research, and other applications. A wide range of
hardware and software extensions are available, including our MultiMedia
Player, EEG Audio “Deep States” software, the MINI-Q assessment tool, and
the NeuroGuide software from Applied Neuroscience, just to name a few.
Breadth
–
BrainMaster provides EEG instrumentation, software, sensors and connectors
including our FlexTrode and FlexCap systems, StimFlash and Interactor
hardware and software for photic and vibrotactile stimulation, additional
animation and sound software, the MINI-Q assessment tool and support
software, plus other enhancements and extensions.
Registered –
BrainMaster equipment and software is clinical-grade. Applicable testing
and registration (FDA, IEC 60601-2, CE, etc). It is suited for clinical or
research use, both for EEG and for biofeedback. When combined with other
clinical packages such as NeuroGuide, it provides a quality end-to-end
solution for EEG assessment and training.
Expansion –
BrainMaster has added dozens of features and options to the system, since
our inception in 1995. It is possible to add capabilities as they become
available, or as you need them, at any time. We also offer upgrade paths
for both software and hardware, to allow users to remain current as new
capabilities and specifications become available (when technically
possible).
Professionalism -
Leading clinicians, educators, and researchers use BrainMaster systems, and
the body of published material citing BrainMaster is growing. The
BrainMaster staff also works with, and has held positions with, professional
organizations such as the ISNR and the AAPB. These ties help us to
encourage professional standards, as well are research and education.
Reporting –
All component values (amplitude, frequency, coherence, phase, etc) are
consistently and automatically logged to disk regardless of the training
protocol used. You are always able to retrieve and review session results,
even while the session is running! No postprocessing or special steps are
necessary. You can run your sessions under time pressure and clinical
demands, confident that the session results are safely put away, for easy
review in a minute, in an hour, or in a year. A wide range of review options
provides graphs, text summaries, reports, and Excel spreadsheets, all at the
touch of a button, for all your training sessions.
Remote
Support –
you are never more than a few mouse clicks away from our Session Librarian
that allows you to compress, package up, and email or save all session
data. Settings and results are saved in a single file, that provides a
digital “trainee folder” that can be transported to other computers, run on
them, and moved to other computers when needed to service a wide range of
home, school, office, and other remote environments, plus maintain clinical
oversight and control when needed.
Experience and Commitment –
The BrainMaster system and company are backed by individuals with many years
of experience in the fields of EEG, clinical neurophysiology, computer
science, personal improvement, biofeedback, and product development and
marketing. Our experience is applied to providing a comprehensive set of
products and services directed toward the needs of the neurofeedback and
clinical EEG community. We are committed to ongoing results, not just to a
single product or service.
Affordability -
BrainMaster’s philosophy has always remained the same. Offer the highest
quality for the most affordable cost. With BrainMaster you are able to begin
clinical training or remote home training economically yet be assured of the
highest quality available. And, you may add additional software or other
features to the system when you choose, at a time when adding equity fits
your budget.
“BrainMaster,” “FlexTrode,” “FlexCap,” “StimFlash,” and “MINI-Q” are
trademarks of BrainMaster Technologies, Inc.
One or
more of the following US patents may apply: 5899867, 6574513, 6931275
 |
 |
|
Frequency Spectrum (FT) Pane |
Thermometer Pane |
 |
 |
|
BrainMirror (FFT) Pane |
BrainMirror (Filter) Pane |
|
 |
|
Coherence/Phase Pane |
“For Clinical Application”
Neurofeedback devices are sold only through or with written permission of a
professional biofeedback practitioner or health professional.
|
